SL-045A

Short Description:

Place of Origin: Guangdong, China
Brand Name: Shinland
Material: Optical grade PC, Optical grade PC
Shape: Round
Style: Optical PC reflector
Color: Vaccum Aluminum Plating
Diameter: Φ:45.0mm H:34.1 mm Φ:12mm
Angle: 13°, 25°, 38°, 60°
Endure Temperature: -35℃ +135℃
Application: Led lights
Certification: ROHS,UL
Packing: Dust-proof, shock-proof packing, Tray packing

Send email to us

Product Detail

Product Tags

Product Specification

1) Type:	Optical grade PC reflector for led light
2) Model Number:	SL-04515A， SL-04524A， SL-04538A
3) Material:	PC

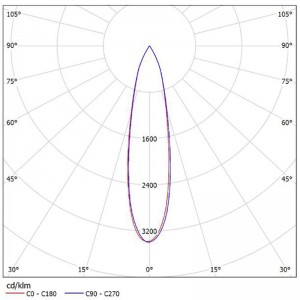

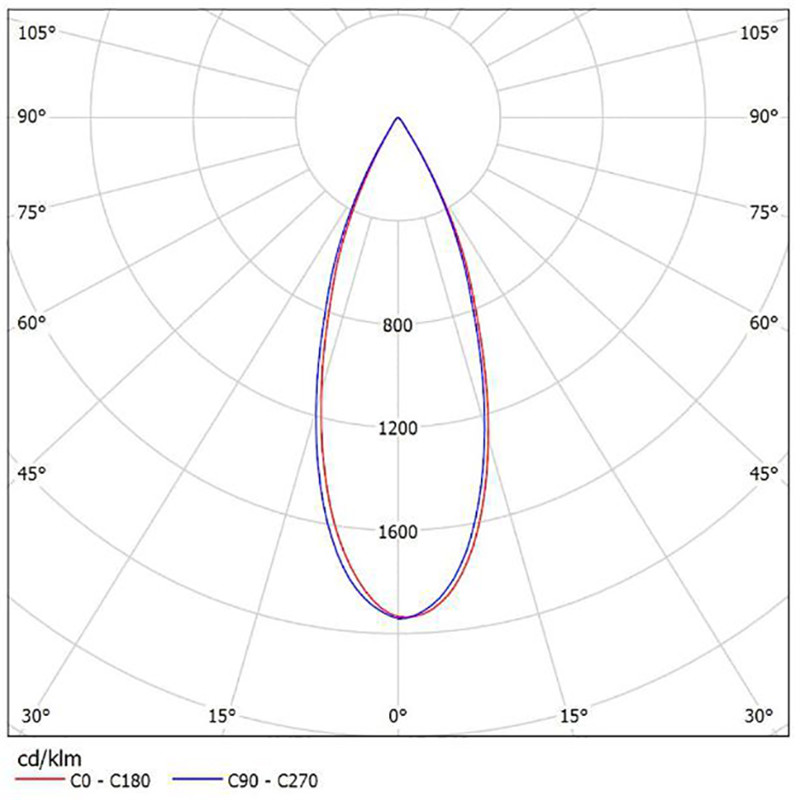

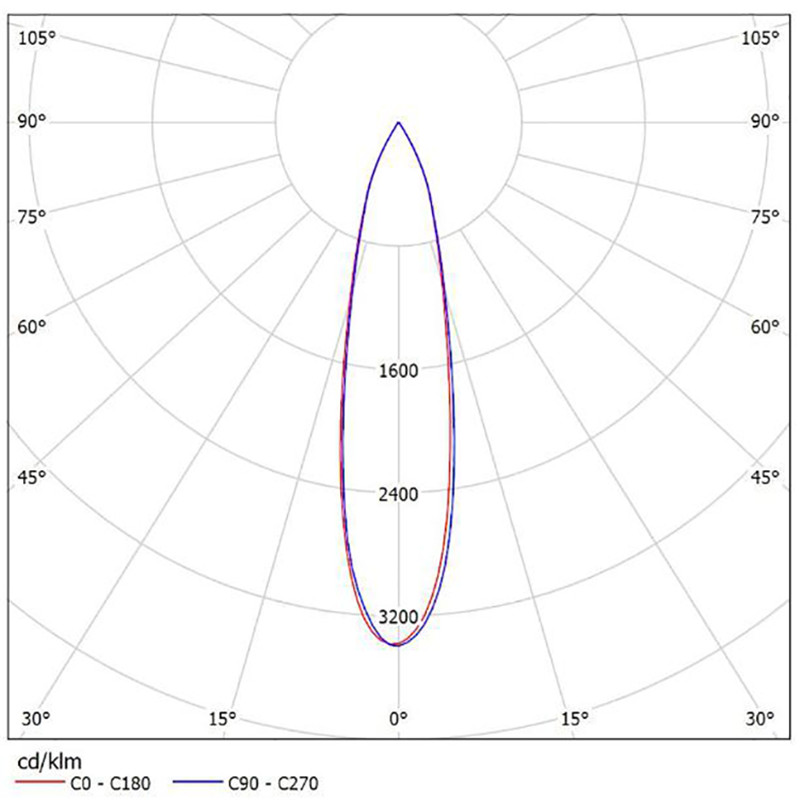

4) View Angle(Fwhm):	15°, 24°, 38°
5) Reflective Efficiency:	90%

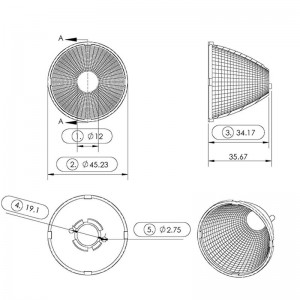

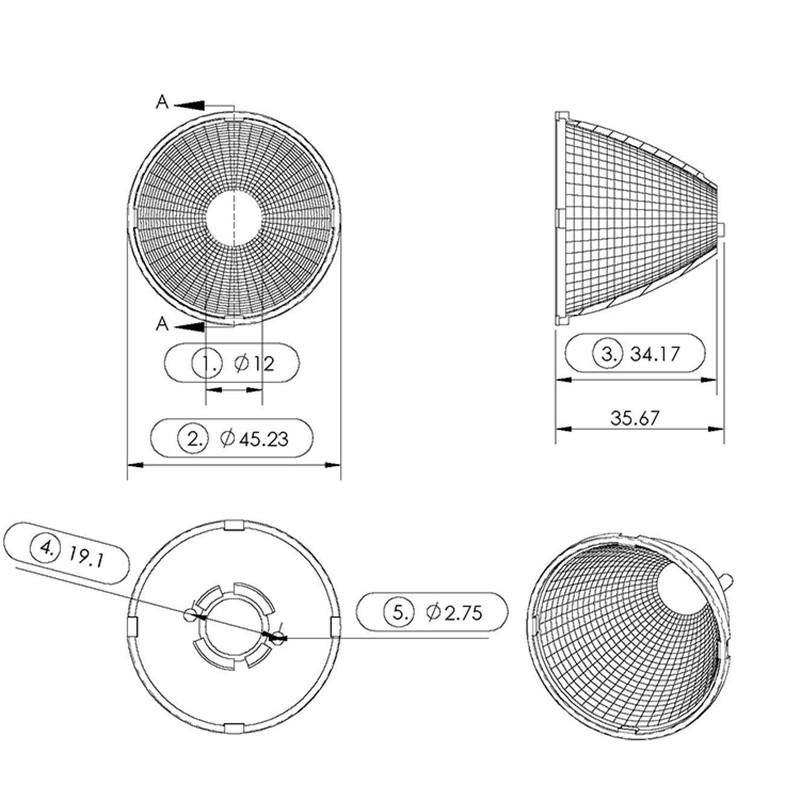

6) Dimension:	Φ:45.0mm H:34.1 mm Φ:12mm(DiameterHeightButtom diameter)
7) Use Temperature:	-35℃ +135℃
8) Logo:	Customized Available
9) Certification:	UL, RoHS
10) Packing	Tray packing
11) Payment Terms	T/T
12) Port	Shenzhen, DongGuang
13) Lead Time	3-7 days for sample order,7-15 days for mass product
14) Application	Spotlight, down light, track light ..ect

COB Light Source

CREE	LUMINUS	CITIZEN	BRIDGELUX	OSRAM	LUMILEDS	TRIDONIC	SAMSUNG	LUMENS	NICHIA
CXA15	CXM-9	CLU028	V10 Gen6	Soleriq S9	105	G4-10	LC020C	EDC-38C	NFCxL036B
	CHM-9		V10 Gen7		1202/1203		LC006B
			blx C8
			E8
