75mm Round Reflector SL-II SL-075I

Short Description:

Place of Origin: Guangdong, China Brand Name: Shinland Material: Optical grade PC, Optical grade PC Shape: Round Style: Optical PC reflector Color: Vaccum Aluminum Plating Diameter: Φ: 75.0mm H: 41.0mm Φ: 23.6mm Angle: 10°, 21°，25°, 27°，38°，41°，58°，62° Application: Led lights Certification: ROHS,UL Packing: Dust-proof, shock-proof packing, Tray packing

Send email to us

Product Detail

Product Tags

Product Specification

1) Type:	Optical grade PC reflector for led light
2) Model Number:	SL-075I-S SL-075I-M SL-075I-L SL-075I-W
3) Material:	PC

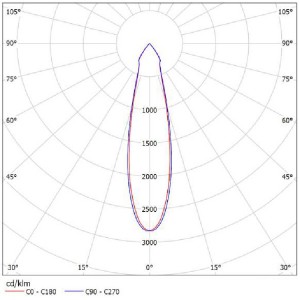

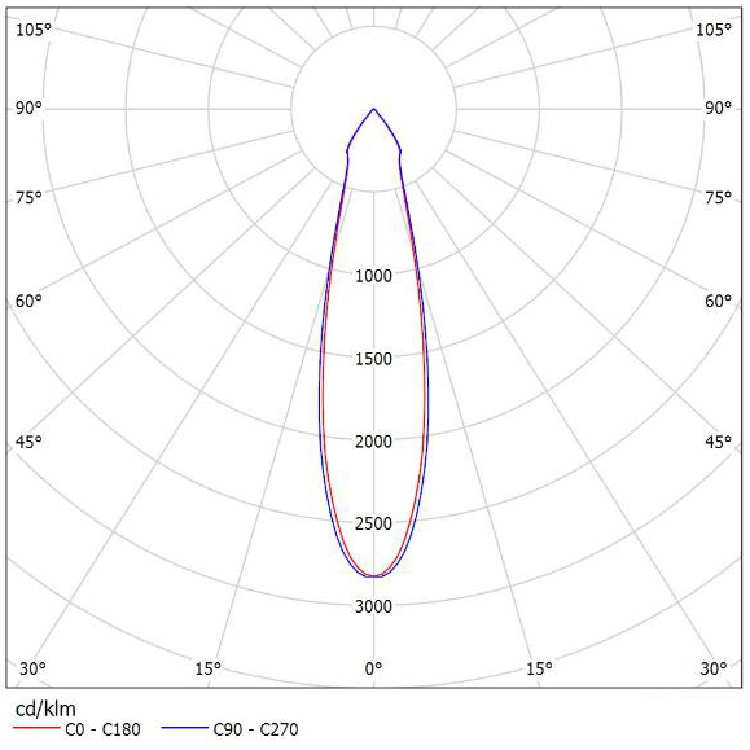

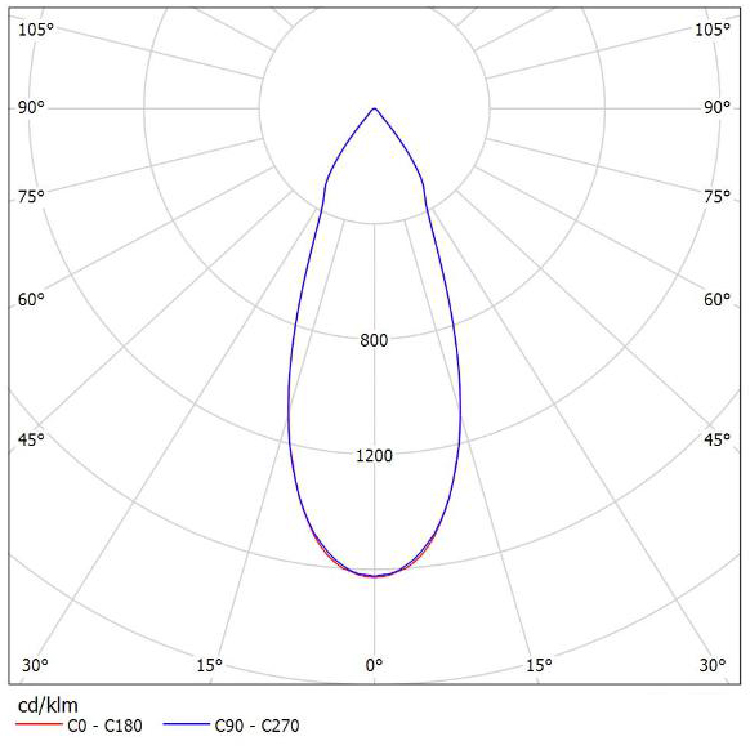

4) View Angle(Fwhm):	10°, 21°，25°, 27°，38°，41°，58°，62°
5) Reflective Efficiency:	92%

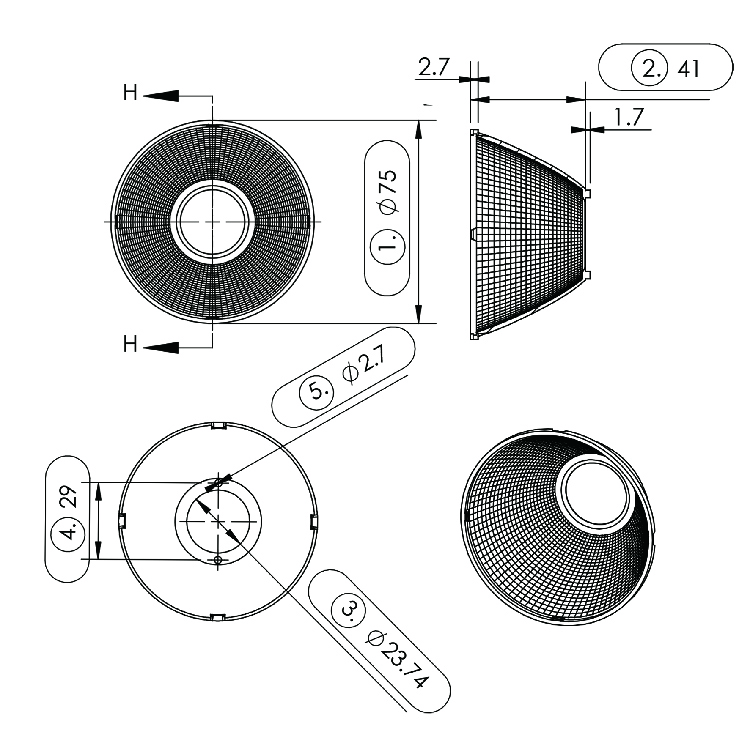

6) Dimension:	Φ:75.0mm H:41.0mm Φ:23.6mm (diameterheightbuttom diameter)
7) Use Temperature:	-20℃ +120℃
8) Logo:	Customized viable
9) Certification:	UL, RoHS
10) Packing	Tray packing
11) Payment Terms	T/T
12) Port	Shenzhen, DongGuang
13) Lead Time	3-7 days for sample order,7-15 days for mass product
14) Application	Spotlight, down light, track light ..ect

COB Light Source

CITIZEN	LIMINUS	CREE	BRIDGELUX	OSRAM	LUMILEDS	TRIDONIC	XICATO	SAMSUNG	LUUMENS	NICHIA
CLU028	CXM-6	CXA13	V10 Gen6	Soleriq S9	105	G4-10	XTM-9	LC010C	EDC-38C	NJCxS024Z
CLU038	CXM-7	CXA15	V10 Gen7	Soleriq S13	1202/1203	G4-17	XTM-19	LC020C	EDC-47C	NVCxL024Z
CLU701	CXM-9	CXA18	V13 Gen6	Soleriq S19	1204/1205			LC006B	EDC-57C-20	NVExJ04BZ
CLU711	CXM-14	CXA1830	V13 Gen7		1208			LC040C		NTCxS024B
CLU721	CXM-18		V15 Gen6					LC026B		NFCxL036B
CLU731	CHM-6		V18 Gen6					LC033B		NFCxL060B
CLC020	CHM-9		V18 Gen7							NFCxJ108B
	CHM-11		Vero13							NFDxJ130B
	CHM-14		Vero18
	CDM-6		E8
	CDM-9/CTM-9		E13
	CDM-14/CTM-14		VestaTW9
	CDM-18/CTM-18		VestaTW13

COB Holder

CITIZEN	LIMINUS	CREE	BRIDGELUX	OSRAM	LUMILEDS	TRIDONIC	XICATO	SAMSUNG	LUUMENS	NICHIA
SL-CLL020-HD-B	SL-CXM-6/7-HD-B	SL-CLU700-HD-B	SL-CXA15-HD-B	SL-CLL02X-HD-B	SL-MINI-HD-B	Sl-CLL020-HD--B	SL-XTM-19-HD-B	SL-MINI-HD-B	SL-EDC-38C-HD-B	SL-MINI-HD-B
SL-CLL030-HD-B	SL-CXM-6/7-HD-B	SL-CXA15-HD-B	SL-CLL02X-HD-B	SL-CHM-14-HD-B	SL-1916-HD-B	SL-G4-17-HD-B		SL-MINI-HD-B	SL-EDC-47C-HD-B	SL-MINI-HD-B
SL-CLU700-HD-B	SL-CXM-9-HD-B	SL-CXA18-HD-B	SL-V13-HD-B	SL-CXA-25-HD-B	SL-LHC1-1208-HD-B			SL-CLL020-HD-B	SL-EDC-57C-20-HD-B	SL-LHC1-1208-HD-B
SL-CLU710-HD-B	SL-CXM-14-HD-B	SL-CXA1830-HD-B	SL-CHM-14-HD-B		SL-LHC1-1208-HD-B			SL-1916-HD-B		SL-MINI-HD-B
SL-CLU720-HD-B	SL-CXM-18-HD-B		SL-G4-17-HD-B					SL-CXM-18-HD-B		SL-1916-HD-B
SL-CLU730-HD-B	SL-CXM-6/7-HD-B		SL-CXM-18-HD-B					SL-CXM-18-HD-B		SL-1916-HD-B
SL-CLC020-HD-B	SL-CXM-9-HD-B		SL-CXA25-HD-B							SL-LHC1-1208-HD-B
	SL-CLU720-HD-B		SL-Vero13-HD-B							SL-LHC1-1208-HD-B
	SL-CHM-14-HD-B		SL-Vero18-HD-B
	SL-CDM/CTM-9-HD-B		SL-CXM-6/7-HD-B
	SL-CDM/CTM-14-HD-B		SL-CXA18-HD-B
	SL-CDM/CTM-18-HD-B		SL-VestaTW9-HD-B
			SL-VestaTW13-HD-B
