Plastic Reflector SL-II SL-A-050J

Short Description:

Place of Origin: Guangdong, China
Brand Name: Shinland
Material: Optical grade PC, Optical grade PC
Shape: Round
Style: Optical PC reflector
Color: Vaccum Aluminum Plating
Diameter: Φ: 50.0mm H: 22.7mm Φ: 21.6mm
Angle: 16°/22°/32°/38°/40°
Application: Led lights
Certification: ROHS,UL
Packing: Dust-proof, shock-proof packing, Tray packing

Send email to us

Product Detail

Product Tags

Product Specification

1) Type:	Optical grade PC reflector for led light
2) Model Number:	SL-A-050J-S SL-A-050J-M SL-A-050J-L
3) Material:	PC

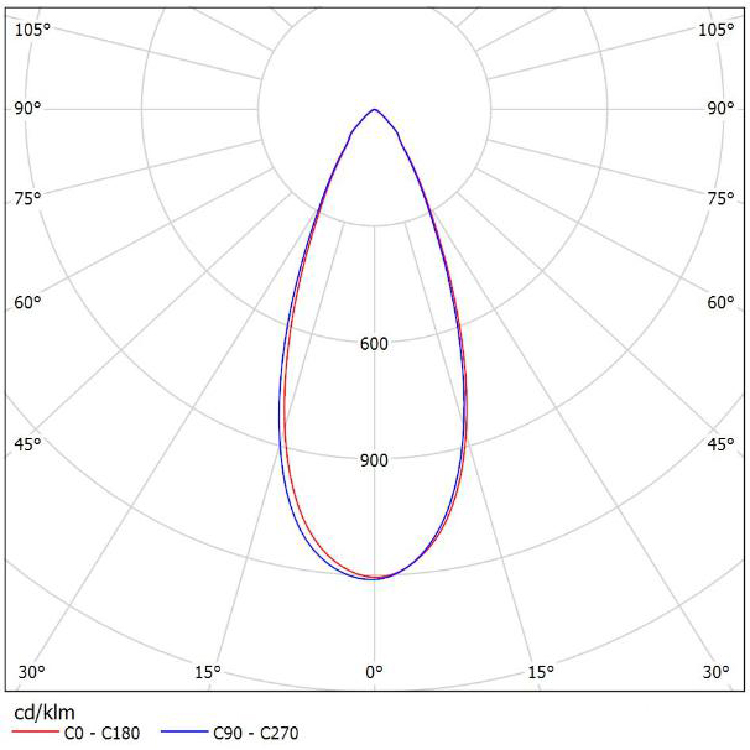

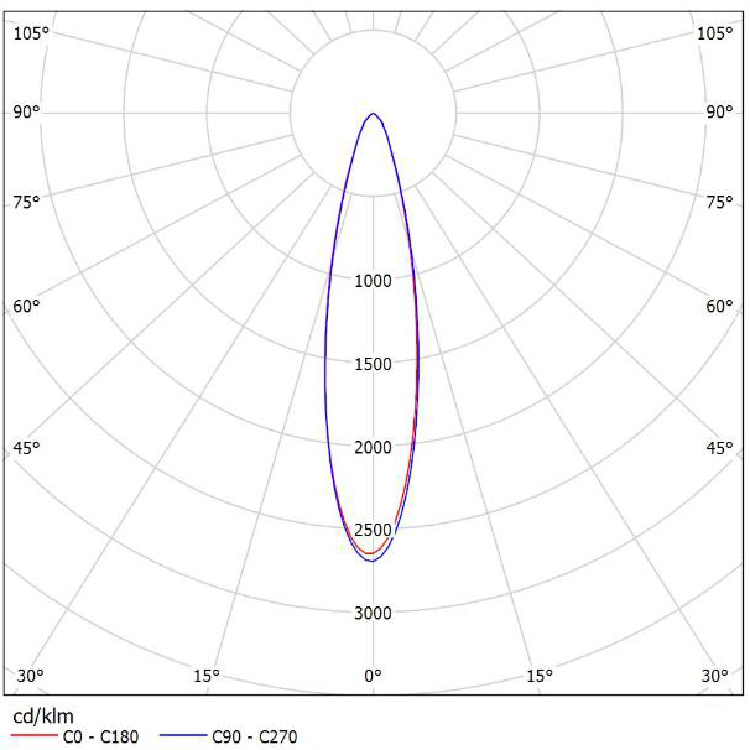

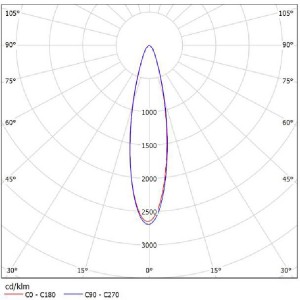

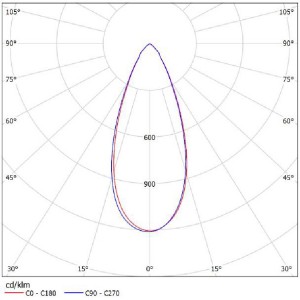

4) View Angle(Fwhm):	16°, 22°，32°, 38°，40°
5) Reflective Efficiency:	88%

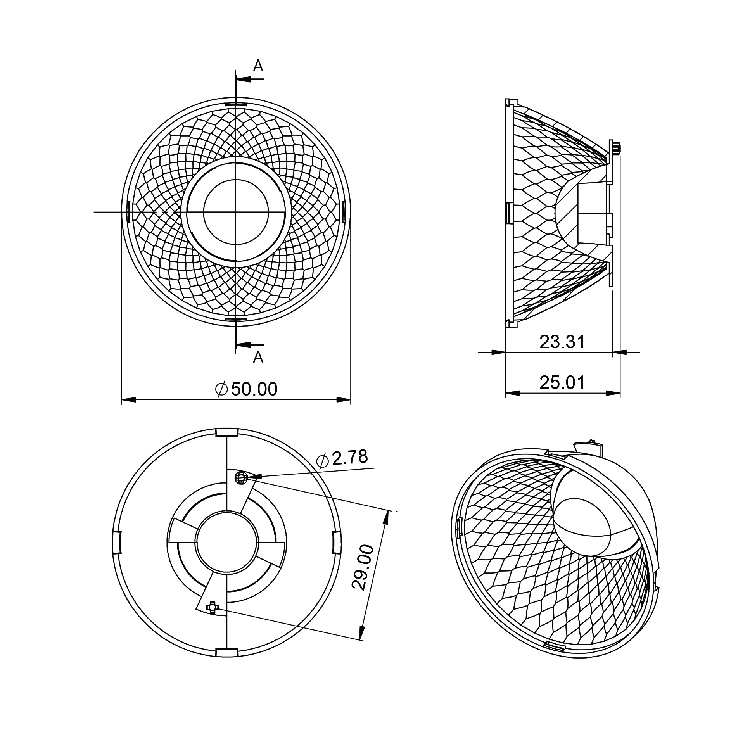

6) Dimension:	Φ:50.0mm H:22.7mm Φ:21.6mm (diameterheightbuttom diameter)
7) Use Temperature:	-20℃ +120℃
8) Logo:	Customized viable
9) Certification:	UL, RoHS
10) Packing	Tray packing
11) Payment Terms	T/T
12) Port	Shenzhen, DongGuang
13) Lead Time	3-7 days for sample order,7-15 days for mass product
14) Application	Spotlight, down light, track light ..ect

COB Light Source

CITIZEN	LIMINUS	CREE	BRIDGELUX	OSRAM	LUMILEDS	TRIDONIC	SAMSUNG	LUUMENS	NICHIA
CLU028	CXM-6	CXA13	V10 Gen6	Soleriq S9	105	G4-10	LC010C	EDC-38C	NJCxS024Z
CLU701	CXM-7	CXA15	V10 Gen7	Soleriq S13	1202/1203		LC020C	EDC-47C	NVCxL024Z
CLU711	CXM-9	CXA18	V13 Gen6		1204/1205		LC006B	EDC-57C-20	NTCxS024B
CLU721	CHM-6		V13 Gen7				LC040C		NFCxL036B
CLC020	CHM-9		Vero13						NFCxL060B
	CHM-11		E8						NVCxJ048Z
			VestaTW9
			VestaTW13

COB Holder

SL-CLL020-HD-B	SL-CXM-6/7-HD-B	SL-CLU700-HD-B	SL-CXA15-HD-B	SL-CLL02X-HD-B	SL-MINI-HD-B	Sl-CLL020-HD--B	SL-MINI-HD-B	SL-EDC-38C-HD-B	SL-MINI-HD-B
SL-CLU700-HD-B	SL-CXM-6/7-HD-B	SL-CXA15-HD-B	SL-CLL02X-HD-B	SL-CHM-14-HD-B	SL-1916-HD-B		SL-MINI-HD-B	SL-EDC-47C-HD-B	SL-MINI-HD-B
SL-CLU710-HD-B	SL-CXM-9-HD-B	SL-CXA18-HD-B	SL-V13-HD-B		SL-LHC1-1208-HD-B		SL-CLL020-HD-B	SL-EDC-57C-20-HD-B	SL-MINI-HD-B
SL-CLU720-HD-B	SL-CXM-6/7-HD-B		SL-CHM-14-HD-B				SL-1916-HD-B		SL-1916-HD-B
SL-CLC020-HD-B	SL-CXM-9-HD-B		SL-Vero13-HD-B						SL-1916-HD-B
	SL-CLU720-HD-B		SL-CXM-6/7-HD-B						SL-LHC1-1208-HD-B
			SL-VestaTW9-HD-B
			SL-VestaTW13-HD-B
