Optical Grade PC Reflector SL-A-062A

Short Description:

Place of Origin: Guangdong, China
Brand Name: Shinland
Material: Optical grade PC, Optical grade PC
Shape: Round
Style: Optical PC reflector
Color:Vaccum Aluminum Plating
Diameter:Φ:62.0mm H:40.2mm Φ:24.5 mm
Angle: 13°, 20°,23°, 29°,37°, 43° Application: Led lights
Certification:ROHS,UL
Packing: Dust-proof, shock-proof packing, Tray packing


Product Detail

Product Tags

Product Specification

1) Type: Optical grade PC reflector for led light
2) Model Number: SL-A-062A-S
SL-A-062A-M
SL-A-062A-L
3) Material:  PC

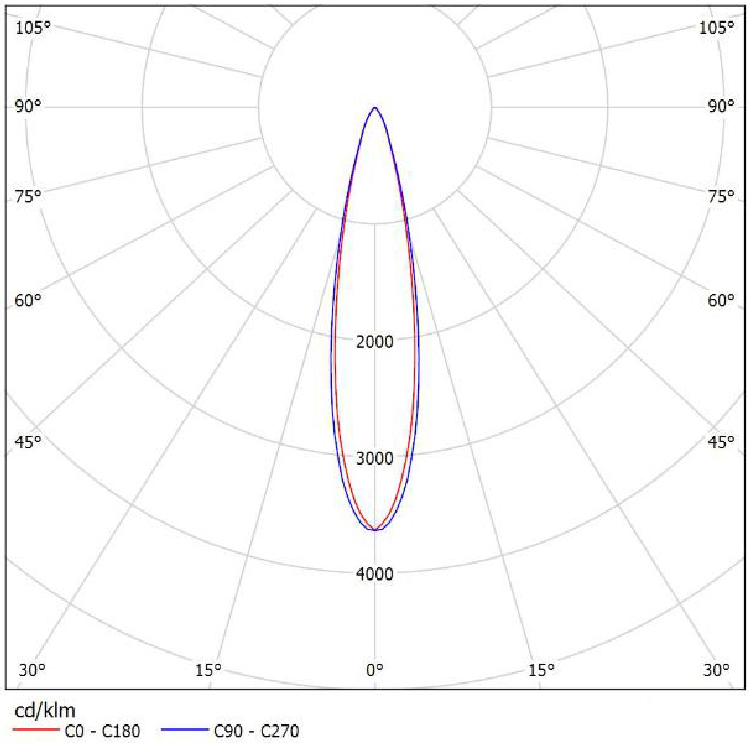

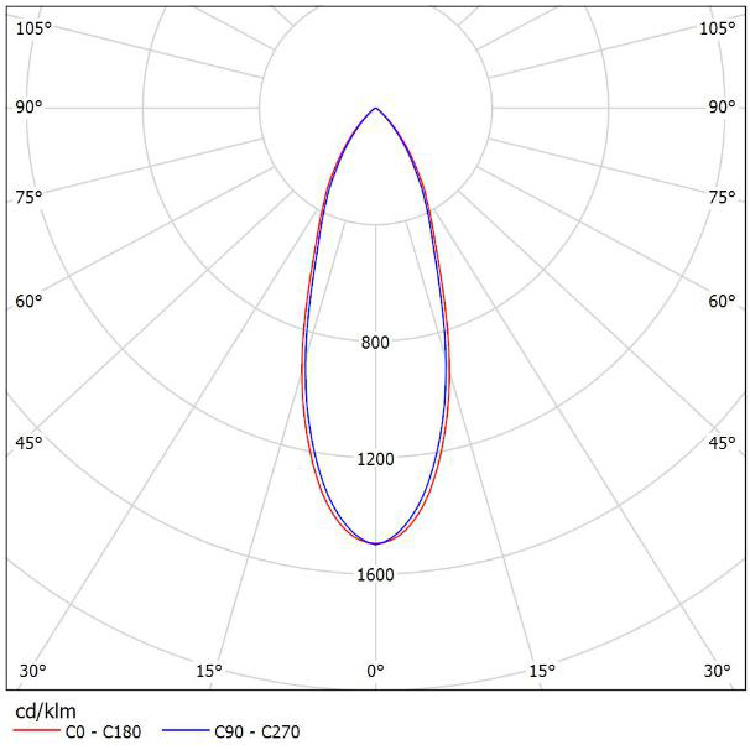

4) View Angle(Fwhm):  13°, 20°,23°, 29°,37°,  43°
5)  Reflective Efficiency:  83%

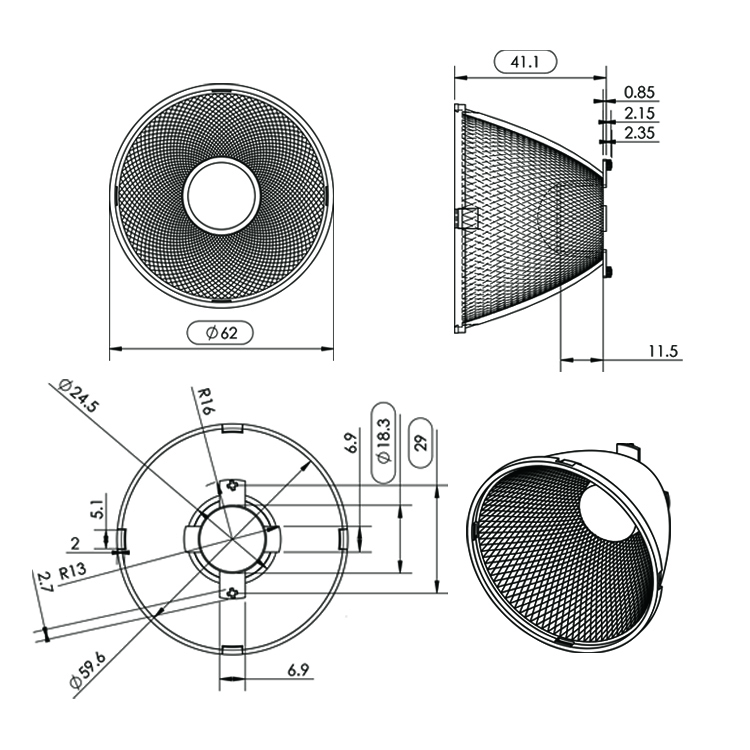

6)  Dimension: Φ:62.0mm H:40.2mm Φ:24.5 mm
 (diameter*height*buttom diameter)
7) Use Temperature:  .-20℃ +120℃
8) Logo: Customized viable
9) Certification: UL, RoHS
10) Packing Tray packing
11) Payment Terms  T/T
12) Port  Shenzhen, DongGuang
13) Lead Time 3-7 days for sample order,7-15 days for mass product
14) Application Spotlight, down light, track light ..ect



COB Light Source

CITIZEN LIMINUS CREE BRIDGELUX LUMILEDS TRIDONIC SAMSUNG LUUMENS NICHIA
CLU028 CXM-9 CXA18 V13 1202/1203 G4-10 LC040C EDC-47C NVExJ048Z
CLU038 CXM-11 CXA1830 Vero13 1204/1205 G4-17 LC006B EDC-57C-20 NFCxL060B
CLU721 CXM-14   E8   G6-10     NFCxJ108B
CLU731 CHM-11   E13   G6-15     NFDxJ130B
CLC020 CHM-14       G6-17

COB Holder

SL-CLL020-HD-B SL-CXM-9-HD-B SL-CXA18-HD-B SL-V13-HD-B SL-1916-HD-B Sl-CLL020-HD--B SL-1916-HD-B SL-EDC-47C-HD-B SL-LHC1-1208-HD-B
SL-CLL030-HD-B SL-CLU720-HD-B SL-CXA1830-HD-B SL-Vero13-HD-B SL-LHC1-1208-HD-B SL-G4-17-HD-B SL-CLL020-HD-B SL-EDC-57C-20-HD-B SL-1916-HD-B
SL-CLU720-HD-B SL-CXM-14-HD-B   SL-CXM-6/7-HD-B   Sl-CLL020-HD--B     SL-LHC1-1208-HD-B
SL-CLU730-HD-B SL-CLU720-HD-B   SL-CXA18-HD-B   SL-CHM-14-HD-B     SL-LHC1-1208-HD-B
SL-CLC020-HD-B SL-CXM-14-HD-B       SL-CLL03X-HD-B
