Optical PC reflector Led lights SL-A-085A

Short Description:

Place of Origin: Guangdong, China

Brand Name: Shinland

Material: Optical grade PC, Optical grade PC

Shape: Round

Style: Optical PC reflector

Color:Vaccum Aluminum Plating

Diameter:Φ:85.0mm H:42.0mm Φ:31.0mm

Angle: 13°, 17°，23°, 25°，37°，40°

Application: Led lights

Certification:ROHS,UL

Packing: Dust-proof, shock-proof packing, Tray packing

Send email to us

Product Detail

Product Tags

Product Specification

1) Type:	Optical grade PC reflector for led light
2) Model Number:	SL-A-085A-S SL-A-085A-M SL-A-085A-L
3) Material:	PC

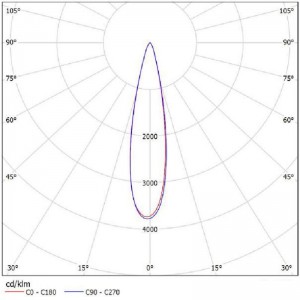

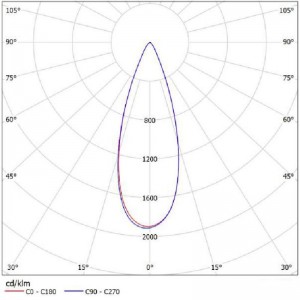

4) View Angle(Fwhm):	13°, 17°，23°, 25°，37°，40°
5) Reflective Efficiency:	88%

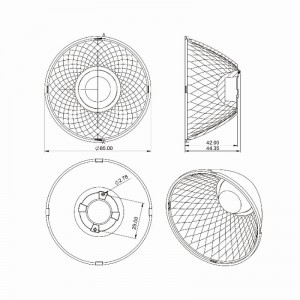

6) Dimension:	Φ:85.0mm H:42.0mm Φ:31.0mm (diameterheightbuttom diameter)
7) Use Temperature:	.-20℃ +120℃
8) Logo:	Customized viable
9) Certification:	UL, RoHS
10) Packing	Tray packing
11) Payment Terms	T/T
12) Port	Shenzhen, DongGuang
13) Lead Time	3-7 days for sample order,7-15 days for mass product
14) Application	Spotlight, down light, track light ..ect

COB Light Source

CITIZEN	LIMINUS	CREE	BRIDGELUX	OSRAM	LUMILEDS	TRIDONIC	XICATO	SAMSUNG	LUMENS	NICHIA
CLU028	CXM-9	CXA15	V10 Gen6	Soleriq S9	105	G4-10	XTM-9	LC020C	EDC-38C	NVCxL024Z
CLU038	CXM-14	CXA18	V10 Gen7	Soleriq S13	1202/1203	G4-17		LC006B	EDC-47C	NVExJ04BZ
CLU711	CXM-18	CXA1830	V13 Gen6		1204/1205			LC026B	EDC-57C-20	NFCxL036B
CLU721	CHM-9		V13 Gen7		1208			LC033B		NFCxL060B
CLU731	CHM-11		V15 Gen6							NFCxJ108B
CLC020	CHM-14		V18 Gen6							NFDxJ130B
	CDM-9/CTM-9		Vero13
	CDM-14/CTM-14		Vero18
	CDM-18/CTM-18		E8
			E13
			VestaTW9
			VestaTW13

COB Holder

SL-CLL020-HD-B	SL-CXM-9-HD-B	SL-CXA15-HD-B	SL-CXA15-HD-B	SL-CLL02X-HD-B	SL-MINI-HD-B	Sl-CLL020-HD--B	SL-XTM-19-HD-B	SL-MINI-HD-B	SL-EDC-38C-HD-B	SL-MINI-HD-B
SL-CLL030-HD-B	SL-CXM-14-HD-B	SL-CXA18-HD-B	SL-CLL02X-HD-B	SL-CHM-14-HD-B	SL-1916-HD-B	SL-G4-17-HD-B		SL-CLL020-HD-B	SL-EDC-47C-HD-B	SL-LHC1-1208-HD-B
SL-CLU710-HD-B	SL-CXM-18-HD-B	SL-CXA1830-HD-B	SL-V13-HD-B		SL-LHC1-1208-HD-B			SL-CXM-18-HD-B	SL-EDC-57C-20-HD-B	SL-1916-HD-B
SL-CLU720-HD-B	SL-CXM-9-HD-B		SL-CHM-14-HD-B		SL-LHC1-1208-HD-B			SL-CXM-18-HD-B		SL-1916-HD-B
SL-CLU730-HD-B	SL-CLU720-HD-B		SL-G4-17-HD-B							SL-LHC1-1208-HD-B
SL-CLC020-HD-B	SL-CHM-14-HD-B		SL-CXM-18-HD-B							SL-LHC1-1208-HD-B
	SL-CDM/CTM-9-HD-B		SL-CXA25-HD-B
	SL-CDM/CTM-14-HD-B		SL-Vero13-HD-B
	SL-CDM/CTM-18-HD-B		SL-Vero18-HD-B
			SL-CXM-6/7-HD-B
			SL-CXA18-HD-B
			SL-VestaTW9-HD-B
			SL-VestaTW13-HD-B

FAQ

Q1:If you are a manufacturer or trading company?
We are professional optical manufacturer, Different from other factory which only have simple process, all aspects included R&D, making mold, injection molding, vacuum coating and market support are our company own vertically integrated production.

Q2: Do you have any MOQ ?
No MOQ required, sample order is welcomed.

Q3: Can we have our LOGO on the reflector, lens?
Yes, All OEM/ODM project can add customer’s Logo.
