Plastic Reflector Led SL-A-110A Reflector

Short Description:

Place of Origin: Guangdong, China
Brand Name: Shinland
Material: Optical grade PC, Optical grade PC
Shape: Round
Style: Optical PC reflector
Color: Vaccum Aluminum Plating
Diameter: Φ: 110.0mm H: 53.0mm Φ: 31.0mm
Angle: 9°, 15°，22°, 24°，35°, 40° Application: Led lights
Certification: ROHS,UL
Packing: Dust-proof, shock-proof packing, Tray packing

Send email to us

Product Detail

Product Tags

Product Specification

1) Type:	Optical grade PC reflector for led light
2) Model Number:	SL-A-110A-S SL-A-110A-M SL-A-110A-L
3) Material:	PC

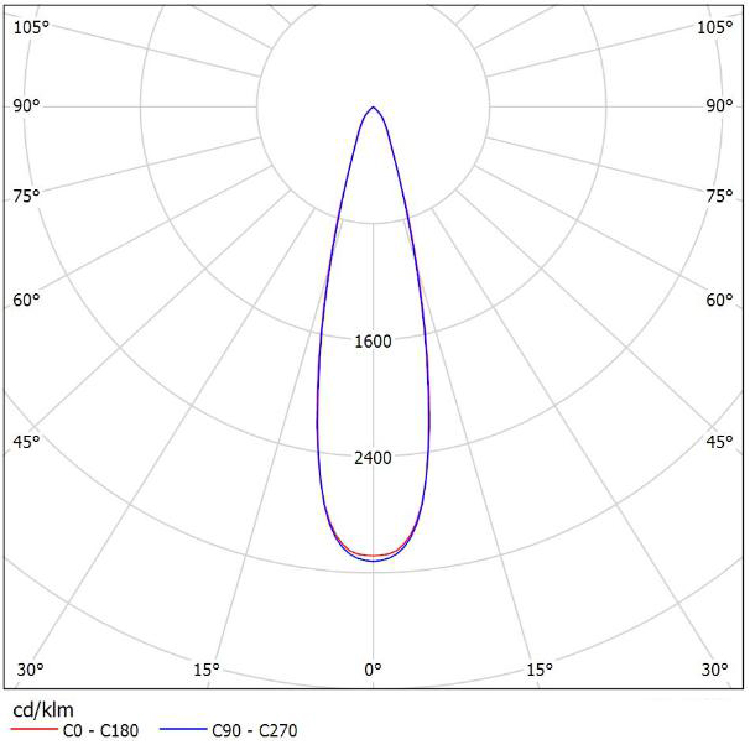

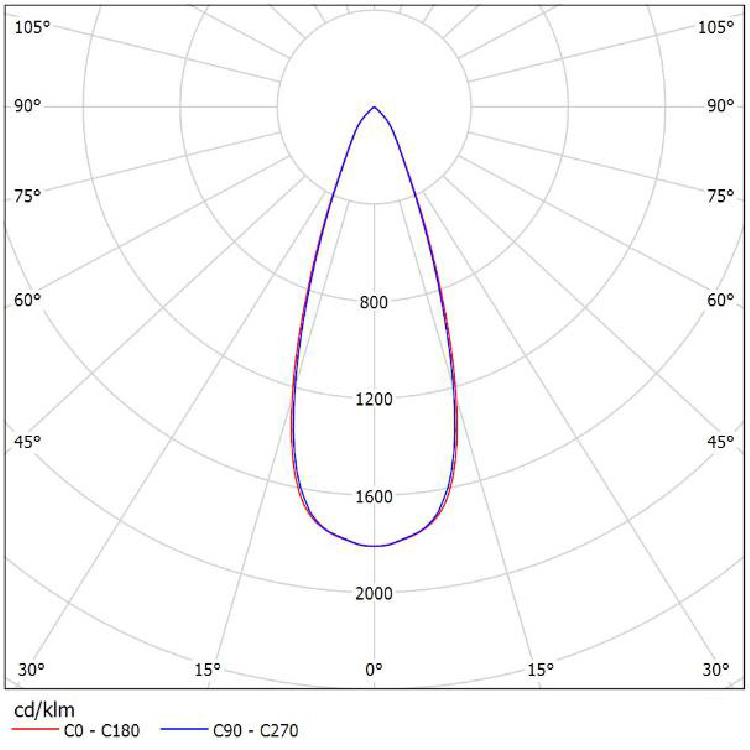

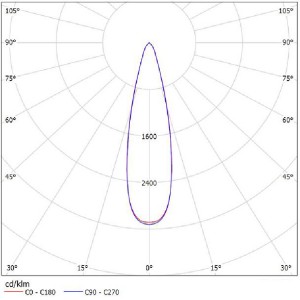

4) View Angle(Fwhm):	9°, 15°，22°, 24°，35°, 40°
5) Reflective Efficiency:	85%

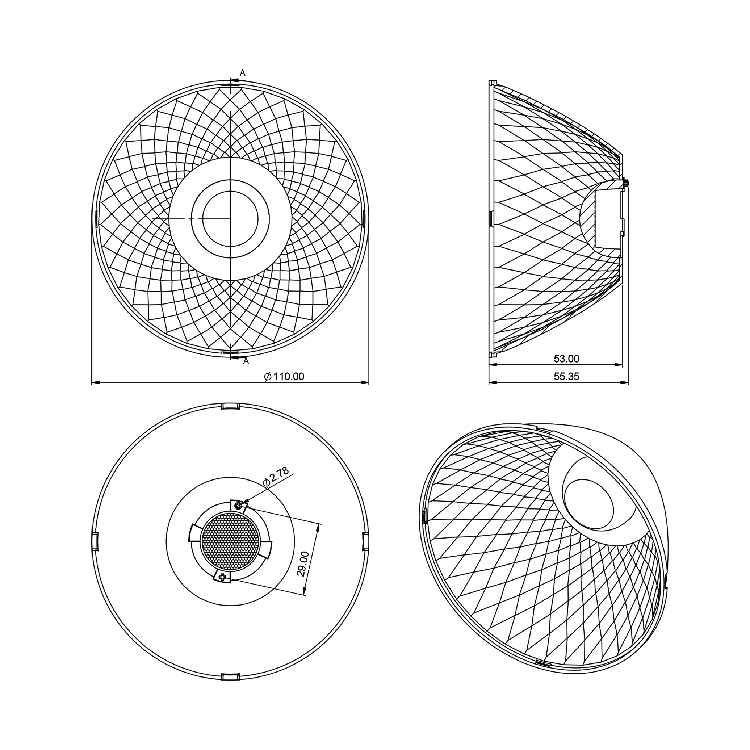

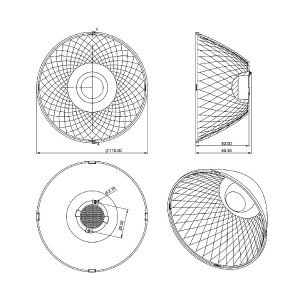

6) Dimension:	Φ:110.0mm H:53.0mm Φ:31.0mm (diameterheightbuttom diameter)
7) Use Temperature:	-20℃ +120℃
8) Logo:	Customized viable
9) Certification:	UL, RoHS
10) Packing	Tray packing
11) Payment Terms	T/T
12) Port	Shenzhen, DongGuang
13) Lead Time	3-7 days for sample order,7-15 days for mass product
14) Application	Spotlight, down light, track light ..ect

COB Light Source

CITIZEN	LIMINUS	CREE	BRIDGELUX	OSRAM	LUMILEDS	TRIDONIC	XICATO	SAMSUNG	LUUMENS	NICHIA
CLU028	CXM-9	CXA15	V10 Gen6	Soleriq S9	105	G4-10	XTM-9	LC020C	EDC-38C	NVCxL024Z
CLU038	CXM-14	CXA18	V10 Gen7	Soleriq S13	1204/1205	G4-17	XTM-19	LC040C	EDC-47C	NFCxL060B
CLU711	CXM-18	CXA25	V13 Gen6	Soleriq S19	1208			LC006B	EDC-57C-20	NFCxJ108B
CLU721	CHM-9	CXA1830	V13 Gen7					LC026B	EDC-57C-30	NFDxJ130B
CLU731	CHM-11		V15 Gen6					LC033B
CLC020	CHM-14		V18 Gen6
	CDM-14/CTM-14		V18 Gen7
	CDM-18/CTM-18		Vero13
			Vero18
			E8
			E13

COB Holder

SL-CLL020-HD-B	SL-CXM-9-HD-B	SL-CXA15-HD-B	SL-CXA15-HD-B	SL-CLL02X-HD-B	SL-MINI-HD-B	Sl-CLL020-HD--B	SL-XTM-19-HD-B	SL-MINI-HD-B	SL-EDC-38C-HD-B	SL-MINI-HD-B
SL-CLL030-HD-B	SL-CXM-14-HD-B	SL-CXA18-HD-B	SL-CLL02X-HD-B	SL-CHM-14-HD-B	SL-LHC1-1208-HD-B	SL-G4-17-HD-B	SL-XTM-19-HD-B	SL-1916-HD-B	SL-EDC-47C-HD-B	SL-1916-HD-B
SL-CLU710-HD-B	SL-CXM-18-HD-B	SL-CXA25-HD-B	SL-V13-HD-B	SL-CXA-25-HD-B	SL-LHC1-1208-HD-B			SL-CLL020-HD-B	SL-EDC-57C-20-HD-B	SL-LHC1-1208-HD-B
SL-CLU720-HD-B	SL-CXM-9-HD-B	SL-CXA1830-HD-B	SL-CHM-14-HD-B					SL-CXM-18-HD-B	SL-EDC-57C-30-HD-B	SL-LHC1-1208-HD-B
SL-CLU730-HD-B	SL-CLU720-HD-B		SL-G4-17-HD-B					SL-CXM-18-HD-B
SL-CLC020-HD-B	SL-CHM-14-HD-B		SL-CXM-18-HD-B
	SL-CDM/CTM-14-HD-B		SL-CXA25-HD-B
	SL-CDM/CTM-18-HD-B		SL-Vero13-HD-B
			SL-Vero18-HD-B
			SL-CXM-6/7-HD-B
			SL-CXA18-HD-B
